Type: palm fruit/bench oil pressing, making machines Processing Material: Palm fruit Processing Capacity: 5-120TPH Palm Oil Mill Plant Flow Chart Introduction: 1.Palm oil mil process of bunch reception: as palm fruit unloading, cleaning, storage platform during palm oil mill processing, all hydraulic segmented discharge. Palm oil mil bunch reception 2.Palm
The waste water has high organic matter content, biochemical oxygen demand BOD is about 25000ppm, required by qualified deal before emissions. Pool sewage treatment system is the most used and effective treatment. This treatment system is cost-effective, only needs adequate space, less investment costs. The equipment list of effluent treatment station: 1.Effluent Treatment Pump 2.Effluent
Water consumption of the palm oil factory include: furnace feeding water, generator cooling water, production and living water, Only the after treated supply water can meet the sanitary requirement. Especially, the furnace supply water should be softened first, After anion and cation exchange resin treatment, meet the requirements of the boiler water, then be treated
Generally speaking, palm oil factory commonly be set in the palm orchard far away from the city, Power supply capacity is low. So, power-supply should be consider independently, build a captive power plant to meet the electricity needs of the palm oil factory which mainly determined by the electricity-consumption of equipment and auxiliary equipment. In

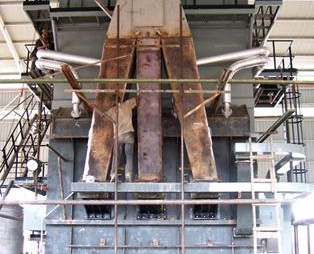

The fuel of the boiler is fiber, Part of the steam out from the furnace supply to the turbine generator. The rest of the steam for equipment-running supply. The equipment list of boiler house: 1.Steam Boiler 2.Back Pressur Vessel c/w Platform 3.Back Pressure Vessel Control System 4.Fibre&Shell Conveyor Structural Support 5.Fibre&Shell Conveyor 6.Excess Fuel Conveyor

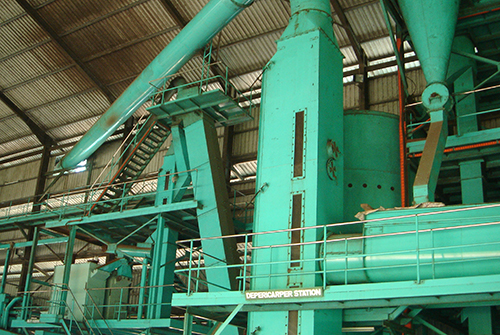

Firstly, the wet fiber and wet nut enter the cake breaker conveyor to be cracked, and mostly of the fiber should be separated by pneumatic fiber depericarper System. The nut, little fiber and big impurity will be further separated by the polishing drum. The separated nut should be sent to nut hopper through the pneumatic
Palm kernel recovery station assures high efficiency recovery process of palm kernel after palm oil pressing processing line. It prepares for further step palm kernel oil pressing process after splitter and crushing. Depericarper (splitter). Palm kernel separates from fibers through floating dry processing during crude palm oil processing machine. Fibers and other light stuff are
Oil storage tank is mainly used as a crude palm oil (CPO) storage tank during palm oil process. It guarantees a certain storage temperature and good sealing. It is useful for temporary storage of crude palm oil. Technical data of oil storage tank: Oil tank volume: 2000T Diameter: 19m Tank height: 11m The equipment list
Clarification station can extract crude palm oil from sludge. The obtained crude palm oil purity can reach up 90%. The extraction oil contains 45%-55% moisture, sludge and other impurities. Purification: crude palm oil purification can improve oil purity and remove impurity successfully. Drying: Continuous Vacuum drier pumps water from crude palm oil. Palm oil moisture
Threshing station uses strong vibration to make separation of palm fruit from palm bunches. Raw materials after sterilization are sent to bucket elevator through damp car, and elevated into threshing machine. Palm fruit separates from bunches, sent to next section elevator through screw conveyor. Empty bunches through conveyor and charger, are transported to certain place
